ROTZLER Hydraulic Winches for Recovery and Rescue Applications


ROTZLER ist one of the leading manufacturers of winch systems and accessories for recovery and rescue operations.

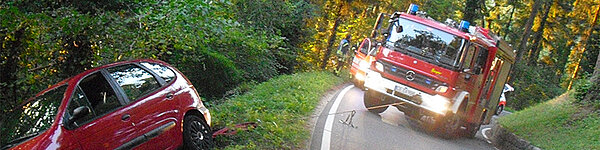

With our hydraulic winches, rescue services can reliably recover vehicles or quickly remove barriers. Maximum security, user-friendly operation and a long lifespan are just some characteristics of our products.

The TREIBMATIC TR 030 FIRE recovery winch was specifically designed for the fire-fighting market.

Both standard products and custom designs for custom vehicle constructions are available for various applications.

The modular and compact design of ROTZLER winches allow flexible integration into different vehicles.

On request, we provide our customers with the vehicle installation and services from the planning to completion of a project through to seminars, training as well as repair and spare parts service.



Perfect Integration of ROTZLER winches


Experienced designers and construction teams ensure the perfect integration of hydraulic winches with recovery and self-recovery vehicles:

  • Fire-fighting vehicles
  • Rescue and equipment vehicles
  • Crane vehicles
  • Special-purpose vehicles
  • Commercial utility vehicles






Hydraulic pulling winches for the fire-fighting sector


Within our wide product range we offer the TREIBMATIC recovery winch. With a constant pulling force and constant rope speed over the entire rope length, it is a high-performance pulling equipment for fi re brigades.

We meet the highest safety standards of DIN 14584 and additionally offer the appropriate accessories for rope defl ection, duplication of the pulling force, vehicle protection and much more.




Good reasons for using a ROTZLER TREIBMATIC

• Constant pulling force and rope speed

• Flexible and space-saving in-vehicle integration enabled by separate storage drum

• Separate storage drum enables minimal rope wear


• Simplified and user-optimized operation


• Long product life and minimal maintenance effort


• Quality inspection in own ROTZLER-test-center guarantees reliability and safety in
  winch use


• ROTZLER installation service for perfect integration in vehicles




Vorlage allgemeines Dokument

Technical description ROTZLER TREIBMATIC





Version: Single speed

Version: Dual speed

FIRE /

FIRE with FireCAN-connector

F-nom. ≥ 50 kN

Load mode F-nom. ≥ 50 kN

Load mode F-nom. ≥ 50 kN



Speed mode F-nom. ≥ 12 kN

Speed mode F-nom. ≥ 12 kN

v-nom. ≥ 12 m/min

Load mode v-nom. ≥ 12 m/min

Load mode v-nom. ≥ 12 m/min



Speed mode v-nom. ≥ 30 m/min

Speed mode v-nom. ≥ 30 m/min

Operating unit main features:

Operating unit main features:

Operating unit main features:

· Emergency Stop button

· Emergency Stop button

· Emergency Stop button

· Rope In / Out preselect key

· Rope In / Out preselect key

· Rope In / Out preselect key

· Rope In / Rope Out rocker switch

· Rope In / Rope Out rocker switch

· Rope In / Rope Out rocker switch

· Load indicator

· Load indicator

· Load indicator

· Multi language operators brief

  instructions by text

· Multi language operators brief

  instructions by text display

· Multi language operators brief

  instructions by text display

· On / Off key with optical

  feedback "Winch Operational"

 · On / Off key with optical

   feedback "Winch Operational"

· On / Off key with optical

  feedback "Winch Operational"

· "Rope Loop" display

· "Rope Loop" display

· "Rope Loop" display

· "Rope End" display

· "Rope End" display

· "Rope End" display

· "Operation Mode" selection key

· "Operation Mode" selection key

· "Operation Mode" selection key





· Extra-Power (short term approx.

  10%)





· Selectable manual or auto rope

  pay out





With Speed Mode chosen, the winch starts in speed mode and above 12 kN the mode is automatically switched to load mode.

With Load Mode chosen, the winch remains in load mode providing 50 kN maximum pulling force and a maximum of 12 m/min rope speed.









Vorlage allgemeines Dokument

Technical Product Information ROTZLER TREIBMATIC



TREIBMATIC

Version 6*

Dynamic

rated

pulling force

Static

pulling force



Max. rope speed

(1-/ 2-gear)

Ø

Rope



Rope length

Ø

Storage drum



kN



kN



m/min



mm



m



kg

TR 030 / 6

≥ 50

≤ 60

12 / 13

13

60 / 65 / 90

470 /  470 / 520

TR 030 Fire

≥ 50

≤ 60

12 / 30

13

60 / 65 / 90

470 / 470 / 520

TR 080 / 6

≥ 80

≤ 96

9 / 30

16

60 / 70 / 90

520 / 570 /650

TR 200 / 6

≥ 200

≤ 240

15 / 40

24

75 / 90 / 110 / 120 / 130

700 / 800 / 900 / 1000 / 1000

≥ 250

≤ 300

12 / 35

26

60 / 75 / 100 / 110

700 / 800 / 900 / 1000

* The specifications for the Version 6 complies with DIN 14584 and ÖBFV-RL GA 05.
